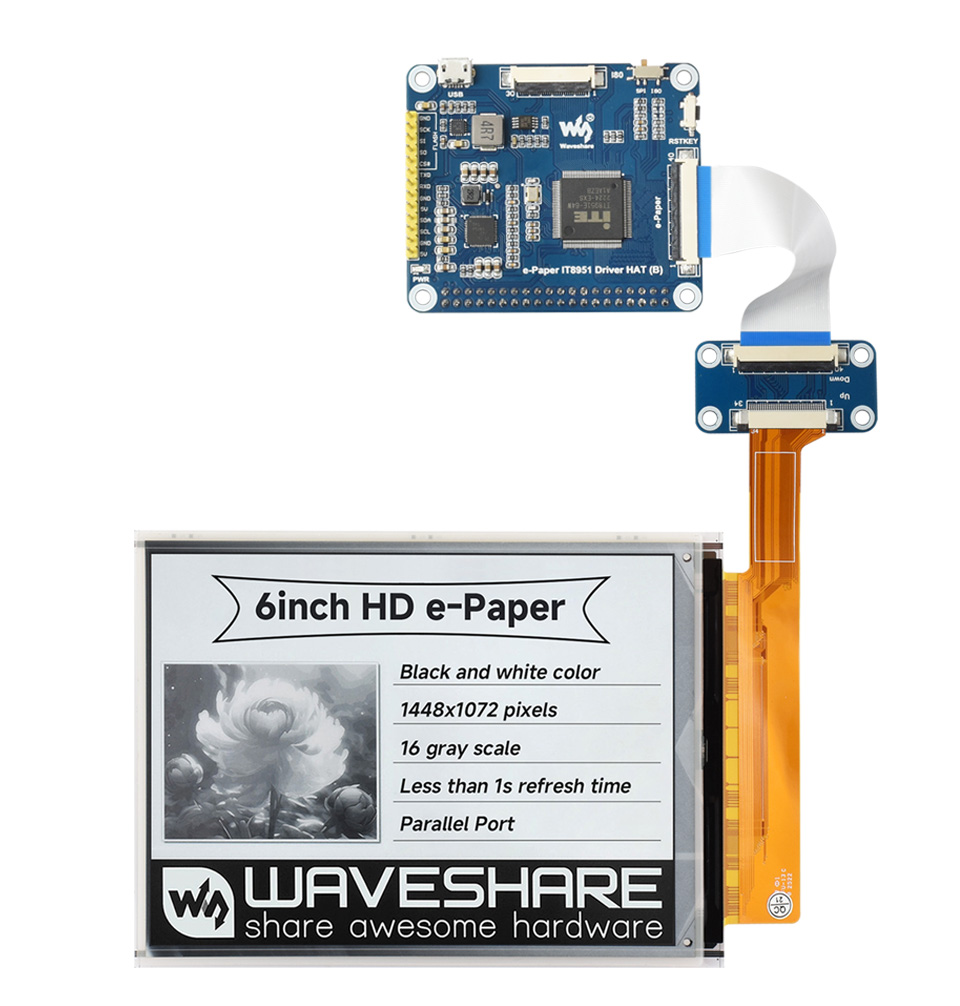

支持局部刷新，功耗低、视角宽、断电仍可清晰显示
用于货架标签、工业仪表等显示应用
6英寸
1448 × 1072
>170°
黑、白
2-16级 (1-4位)
USB/SPI/I80
电子墨水屏
接近纸质
环境光下可见
反射式，不主动发光
支持局部刷新
| 工作电压 | 5V | 显示颜色 | 黑、白 |
|---|---|---|---|
| 通信接口 | USB/SPI/I80 | 灰度等级 | 2-16级 (1-4位) |

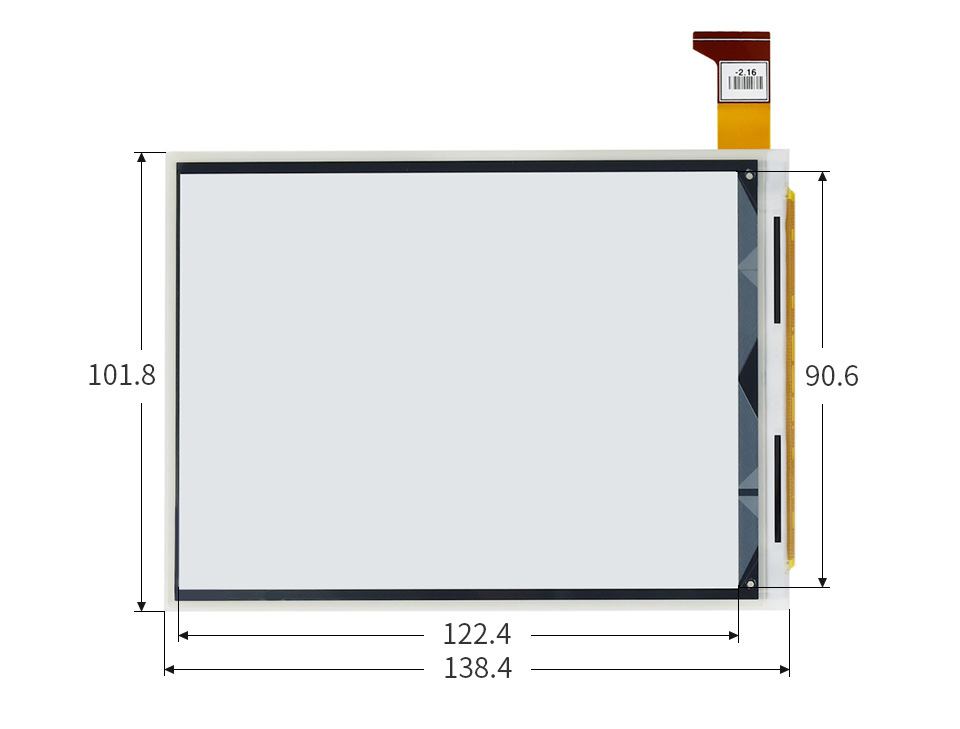

| 屏幕尺寸 | 138.4 × 101.8 × 0.67 (mm) | 全局刷新 | <1s |
| 显示尺寸 | 122.4 × 90.6 (mm) | 总刷新功耗 | 0.88W(typ.) |

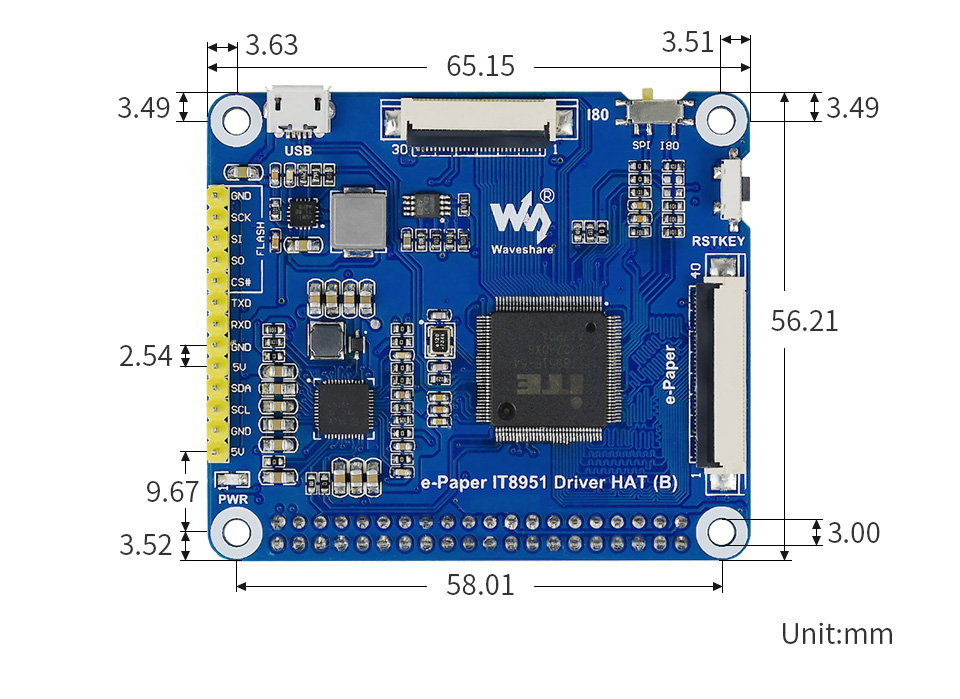

| 模块大小 | 65.15 × 56.21 (mm) | 总待机功耗 | 0.3W(typ.) |
| 点距 | 0.0845 × 0.0845mm | 可视角度 | >170° |
| 分辨率 | 1448 × 1072pixels |

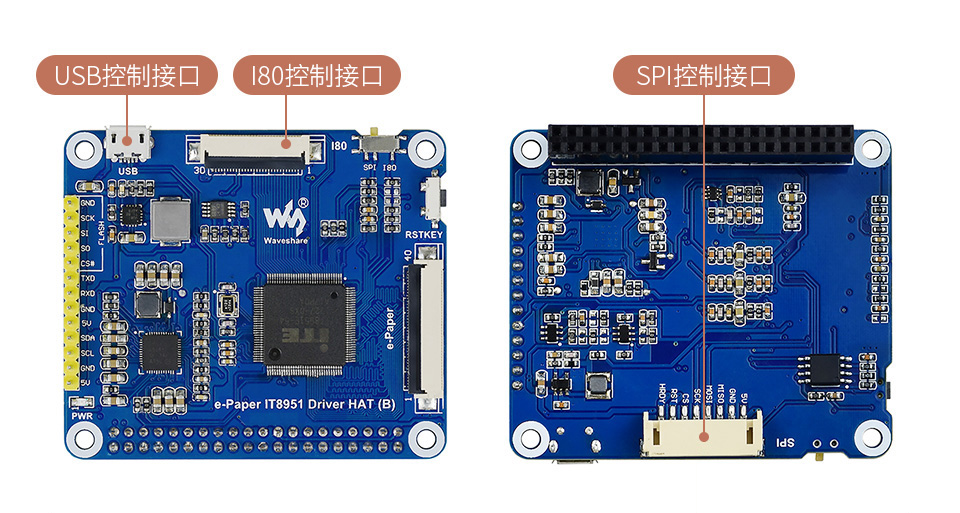

| SPI接口说明 | |
| 5V | 5V电源输入 |
|---|---|
| GND | GND |
| MISO | SPI通信MISO引脚 |
| MOSI | SPI通信MOSI引脚 |
| SCK | SPI通信SCK引脚 |
| CS | SPI片选引脚（低电平有效） |
| RST | 外部复位引脚（低电平复位） |
| HRDY | 忙状态输出引脚（低电平表示忙） |
| 型号 | 显示颜色 | 灰度 | 分辨率 | 显示尺寸(mm) | 外形尺寸(mm) |
刷新 时间(s) |
局部 刷新 |
Pi 接口 |
柔性 |
控制 接口 |
|---|---|---|---|---|---|---|---|---|---|---|
|
1.02inch e-Paper Module |
黑、白 | 2 | 128×80 | 21.76 × 14.00 | 42.0 × 27.0 | 2 | √ | – | – | SPI |
|
1.54inch e-Paper Module |
黑、白 | 2 | 200×200 | 27.00 × 27.00 | 48.0 × 33.0 | 2 | √ | – | – | SPI |
|
1.54inch e-Paper Module (B) |
红、黑、白 | 2 | 200×200 | 27.00 × 27.00 | 48.0 × 33.0 | 14 | – | – | – | SPI |
|
1.54inch e-Paper Module (E) |
E6 全彩色 | 2 | 240×240 | 27.00 × 27.00 | 48.00 × 33.00 | 27 | – | – | – | SPI |
|
1.54inch e-Paper Module (G) |
红、黄、黑、白 | 2 | 200×200 | 27.00 × 27.00 | 48.0 × 33.0 | 20 | – | – | – | SPI |
|
1.64inch e-Paper Module (G) |
红、黄、黑、白 | 2 | 168×168 | 29.568 × 29.568 | 47 × 38 | 12 | – | – | – | SPI |
|
2.13inch e-Paper HAT |
黑、白 | 2 | 250×122 | 48.55 × 23.70 | 65.0 × 30.2 | 2 | √ | √ | – | SPI |
|
2.13inch e-Paper HAT+ |
黑、白 | 2 | 250×122 | 48.55 × 23.70 | 65.0 × 30.5 | 2 | √ | √ | – | SPI |
|
2.13inch e-Paper HAT (B) |
红、黑、白 | 2 | 250×122 | 48.55 × 23.70 | 65.0 × 30.2 | 15 | – | √ | – | SPI |
|
2.13inch e-Paper HAT (G) |
红、黄、黑、白 | 2 | 250×122 | 48.55 × 23.70 | 65.0 × 30.2 | 25 | – | √ | – | SPI |
|
2.13inch Touch e-Paper HAT |
黑、白 | 2 | 250×122 | 48.55 × 23.70 | 69.15 × 38.90 | 2 | √ | √ | – | SPI |
|
2.13inch Touch e-Paper HAT |
黑、白 | 2 | 250×122 | 48.55 × 23.70 | 72.20 × 41.90 | 2 | √ | √ | – | SPI |
|
2.15inch e-Paper HAT+ (B) |
红、黑、白 | 2 | 296×160 | 48.10 × 26.00 | 65.0 × 34.0 | 23 | – | √ | – | SPI |
|
2.15inch e-Paper HAT+ (G) |
红、黄、黑、白 | 2 | 296×160 | 48.10 × 26.00 | 65.0 × 34.0 | 20 | – | √ | – | SPI |
|
2.36inch e-Paper Module (G) |
红、黄、黑、白 | 2 | 296×168 | 52.096 × 29.568 | 69.5 × 38.5 | 12 | – | – | – | SPI |
|
2.66inch e-Paper Module |
黑、白 | 2 | 296×152 | 60.088 × 30.704 | 83.5 × 37.0 | 6 | √ | – | – | SPI |
|
2.66inch e-Paper Module (B) |
红、黑、白 | 2 | 296×152 | 60.088 × 30.704 | 83.5 × 37.0 | 15 | – | – | – | SPI |
|
2.66inch e-Paper Module (G) |
红、黄、黑、白 | 2 | 360×184 | 60.05 × 30.69 | 85.0 × 38.5 | 26 | – | – | – | SPI |
|
2.7inch e-Paper HAT |
黑、白 | 4 | 264×176 | 57.29 × 38.19 | 85.0 × 56.0 | 6 | √ | √ | – | SPI |
|
2.7inch e-Paper HAT (B) |
红、黑、白 | 2 | 264×176 | 57.288 × 38.192 | 73.5 × 56.0 | 15 | – | √ | – | SPI |
|
2.9inch e-Paper Module |
黑、白 | 4 | 296×128 | 66.89 × 29.05 | 89.5 × 38.0 | 3 | √ | – | – | SPI |
|
2.9inch e-Paper Module (B) |
红、黑、白 | 2 | 296×128 | 66.90 × 29.06 | 89.5 × 38.0 | 15 | – | – | – | SPI |
|
2.9inch e-Paper Module (G) |
红、黄、黑、白 | 2 | 296×128 | 66.89 × 29.05 | 89.5 × 38.0 | 16 | – | – | – | SPI |
|
2.9inch Touch e-Paper HAT |
黑、白 | 4 | 296×128 | 66.89 × 29.05 | 89.10 × 42.70 | 3 | √ | √ | – | SPI |
|
3inch e-Paper Module (G) |
红、黄、黑、白 | 2 | 400×168 | 70.40 × 29.568 | 88.5 × 41 | 12 | – | – | – | SPI |
|
3.5inch e-Paper Module (G) |
红、黄、黑、白 | 2 | 384×184 | 79.68 × 38.18 | 94.00 × 47.50 | 20 | – | – | – | SPI |
|
3.52inch e-Paper HAT |
黑、白 | 2 | 360×240 | 74.51 × 49.67 | 86.50 × 57.00 | 1.5 | – | √ | – | SPI |
|
3.52inch e-Paper HAT (B) |
红、黑、白 | 2 | 360×240 | 74.51 × 49.67 | 86.50 × 57.0 | 16 | – | √ | – | SPI |
| 3.6inch e-Paper HAT+ (E) | E6全彩色 | 2 | 600×400 | 76.20 × 50.80 | 89.50 × 59.00 | 15 | – | √ | – | SPI |
|
3.7inch e-Paper HAT |
黑、白 | 4 | 480×280 | 81.12 × 47.32 | 96.50 × 58.00 | 3 | √ | √ | – | SPI |
|
3.7inch e-Paper HAT+ (G) |
红、黄、黑、白 | 2 | 416×240 | 81.54 × 47.04 | 96.00 × 57.00 | 20 | – | √ | – | SPI |
|
3.97inch e-Paper HAT+ |
黑、白 | 4 | 800×480 | 86.40 × 51.84 | 99.50 × 60.00 | 3.5 | √ | √ | – | SPI |
|
3.97inch e-Paper HAT+ (G) |
红、黄、黑、白 | 2 | 800×480 | 86.40 × 51.84 | 99.50 × 60.00 | 21 | – | √ | – | SPI |
|
4inch e-Paper HAT+ (E) |
E6全彩色 | 2 | 600×400 | 84.60 × 56.40 | 101.00 × 68.00 | 19 | – | √ | – | SPI |
|
4.2inch e-Paper Module |
黑、白 | 4 | 400×300 | 84.80 × 63.60 | 103.00 × 78.50 | 5 | √ | – | – | SPI |
|
4.2inch e-Paper Module (B) |
红、黑、白 | 2 | 400×300 | 84.80 × 63.60 | 103.00 × 78.50 | 15 | – | – | – | SPI |
|
4.2inch e-Paper Module (G) |
红、黄、黑、白 | 2 | 400×300 | 84.80 × 63.60 | 103.00 × 78.50 | 21 | – | – | – | SPI |
|
4.26inch e-Paper HAT |
黑、白 | 4 | 800×480 | 92.80 × 55.68 | 107.00 × 64.00 | 4 | √ | √ | – | SPI |
|
4.26inch e-Paper HAT+ (G) |
红、黄、黑、白 | 2 | 800×480 | 92.80 × 55.68 | 107.00 × 64.00 | 20 | – | √ | – | SPI |
|
4.37inch e-Paper Module (G) |
红、黄、黑、白 | 2 | 512×368 | 90.11 × 64.77 | 101.50 × 81.50 | 14 | – | – | – | SPI |
|
4.3inch e-Paper UART Module |
黑、白 | 4 | 800×600 | 88.00 × 66.00 | 118.00 × 75.00 | 1.5 | – | – | – | UART |
|
5inch e-Paper HAT |
黑、白 | 2 | 960×552 | 110.59 × 62.65 | 126.38 × 71.19 | 1.8 | √ | √ | – | SPI |
|
5.79inch e-Paper Module |
黑、白 | 4 | 792×272 | 139.00 × 47.74 | 152.50 × 58.50 | 3.5 | √ | – | – | SPI |
|
5.79inch e-Paper Module (B) |
红、黑、白 | 2 | 792×272 | 139.00 × 47.74 | 152.50 × 58.50 | 24 | – | – | – | SPI |
|
5.79inch e-Paper Module (G) |
红、黄、黑、白 | 2 | 792×272 | 139.00 × 47.74 | 152.50 × 58.50 | 21 | – | – | – | SPI |
|
5.83inch e-Paper HAT |
黑、白 | 2 | 648×480 | 119.232 × 88.320 | 125.40 × 99.50 | 5 | – | √ | – | SPI |
| 5.83inch e-Paper HAT (G) | 红、黄、黑、白 | 2 | 648×480 | 118.78 × 88.22 | 125.40 × 99.50 | 20 | – | √ | – | SPI |
|
6inch HD e-Paper HAT |
黑、白 | 16 | 1448×1072 | 122.40 × 90.60 | 138.40 × 101.80 | <1 | √ | √ | – |
USB/SPI/ I80 |
|
7.3inch e-Paper HAT (E) |
E6全彩色 | 2 | 800×480 | 160.00 × 96.00 | 170.20 × 111.20 | 25 | – | √ | – | SPI |
|
7.3inch e-Paper HAT (F) |
7彩色 | 2 | 800×480 | 160.00 × 96.00 | 170.20 × 111.20 | 35 | – | √ | – | SPI |
|
7.5inch e-Paper HAT |
黑、白 | 4 | 800×480 | 163.20 × 97.92 | 170.20 × 111.20 | 4 | √ | √ | – | SPI |
|
7.5inch e-Paper HAT (B) |
红、黑、白 | 2 | 800×480 | 163.20 × 97.92 | 170.20 × 111.20 | 26 | √ | √ | – | SPI |
|
7.5inch e-Paper HAT (H) |
红、黄、黑、白 | 2 | 800×480 | 163.20 × 97.92 | 170.20 × 111.20 | 22 | – | √ | – | SPI |
|
7.8inch e-Paper HAT |
黑、白 | 16 | 1872×1404 | 158.18 × 118.64 | 173.80 × 127.60 | <1 | √ | √ | – |
USB/SPI/ I80 |
|
9.7inch e-Paper HAT |
黑、白 | 16 | 1200×825 | 202.80 × 139.43 | 218.80 × 156.40 | <1 | √ | √ | – |
USB/SPI/ I80 |
|
9.7inch e-Paper HAT+ (E) |
E6 全彩色 | 2 | 1120×784 | 201.60 × 141.12 | 210.80 × 154.90 | 30 | – | √ | – | SPI |
|
10.2inch e-Paper HAT (G) |
红、黄、黑、白 | 2 | 960×640 | 215.52 × 143.68 | 224.00 × 157.00 | 27 | – | √ | – | SPI |
|
10.3inch e-Paper HAT |
黑、白 | 16 | 1872×1404 | 209.66 × 157.25 | 216.70 × 174.40 | <1 | √ | √ | – |
USB/SPI/ I80 |
|
10.3inch e-Paper HAT (D) |
黑、白 | 16 | 1872×1404 | 209.664 × 157.248 | 227.70 × 165.80 | <1 | √ | √ | √ |
USB/SPI/ I80 |
|
10.85inch e-Paper HAT+ |
黑、白 | 2 | 1360×480 | 259.76 × 91.68 | 270.56 × 105.92 | 3.5 | – | √ | – | SPI |
|
10.85inch e-Paper HAT+ (G) |
红、黄、黑、白 | 2 | 1360×480 | 259.76 × 91.68 | 270.56 × 105.92 | 21 | – | √ | – | SPI |
|
12.48inch e-Paper Module |
黑、白 | 2 | 1304×984 | 252.98 × 190.90 | 280.00 × 229.50 | <8 | – | √ | – | SPI |
|
12.48inch e-Paper Module (B) |
红、黑、白 | 2 | 1304×984 | 252.98 × 190.90 | 280.00 × 229.50 | 37 | – | √ | – | SPI |
|
13.3inch e-Paper HAT |
黑、白 | 16 | 1600×1200 | 270.40 × 202.80 | 285.80 × 213.65 | <1 | √ | √ | – |
USB/SPI/ I80 |
|
13.3inch e-Paper HAT (B) |
红、黑、白 | 2 | 960×680 | 275.52 × 195.16 | 286.32 × 212.26 | 22 | √ | √ | – | SPI |
|
13.3inch e-Paper HAT (K) |
黑、白 | 4 | 960×680 | 275.52 × 195.16 | 286.32 × 212.26 | 5 | √ | √ | – | SPI |
|
13.3inch e-Paper HAT (E) |
E6全彩色 | 2 | 1600×1200 | 270.40 × 202.80 | 284.70 × 208.80 | 19 | – | √ | – | SPI |
|
|
1.02inch
1.54inch
1.54inch (B)
1.54inch (E)
1.54inch (G)
1.64inch (G)
2.13inch
2.13inch Plus
2.13inch (B)
2.13inch (G)
2.13inch Touch
2.13inch Touch
(with case)
2.15inch (B)
2.15inch (G)
2.36inch (G)
2.66inch
2.66inch (B)
2.66inch (G)
2.7inch
2.7inch (B)
2.9inch
2.9inch (B)
2.9inch (G)
2.9inch Touch
3inch (G)
3.5inch (G)
3.52inch
3.52inch (B)
3.6inch (E)
3.7inch
3.7inch (G)
3.97inch
3.97inch (G)
4inch (E)
4.2inch
4.2inch (B)
4.2inch (G)
4.26inch
4.26inch (G)
4.3inch UART
4.37inch (G)
5inch
5.79inch
5.79inch (B)
5.79inch (G)
5.83inch
5.83inch (G)
7.3inch (E)
7.3inch (F)
7.5inch
7.5inch (B)
7.5inch (H)
6inch HD
7.8inch
9.7inch
9.7inch (E)
10.2inch (G)
10.3inch (D)
10.3inch
10.85inch
10.85inch (G)
12.48inch
12.48inch (B)
13.3inch
13.3inch (B)
13.3inch (K)
13.3inch (E)
1
2+3+4
5USB-micro
6Hexagon-Copper-Pillar-M16-3x2pcs
