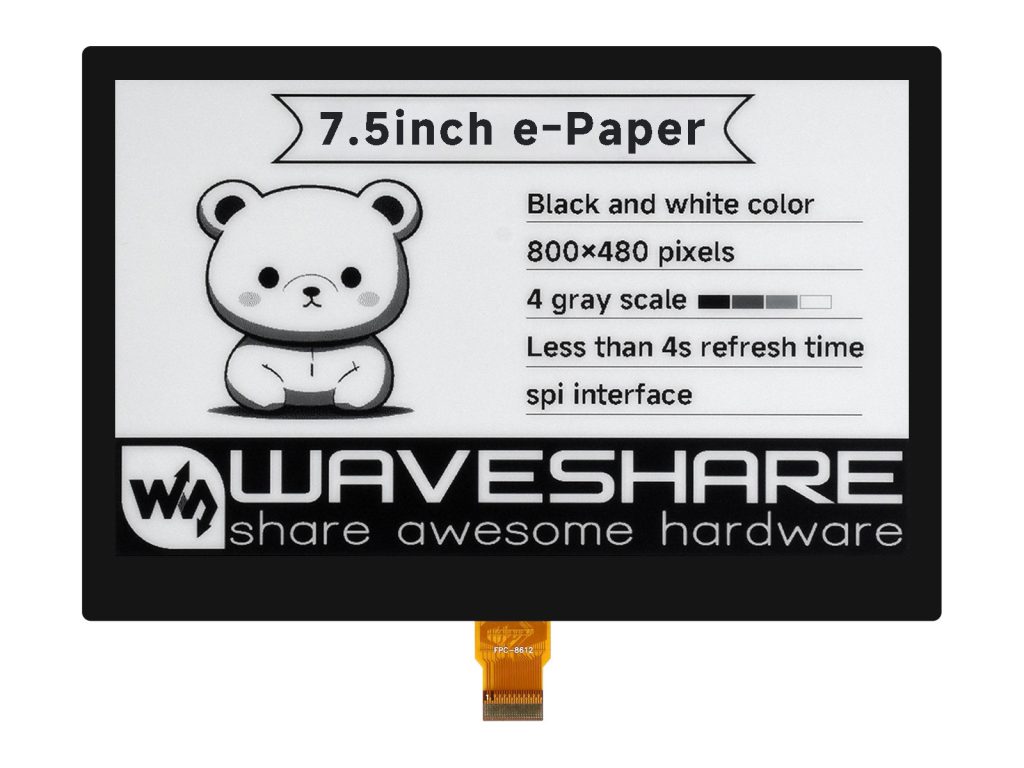

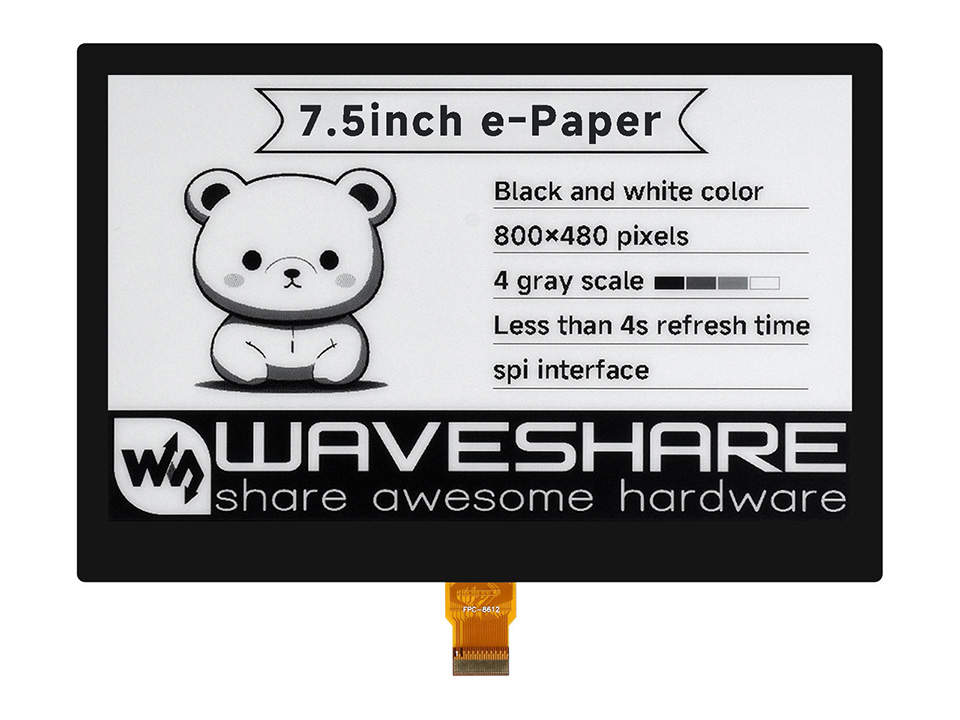

功耗低、视角宽、断电仍可清晰显示
用于货架标签、工业仪表等显示应用
| 工作电压 | 3.3V | 显示颜色 | 黑、白 |
|---|---|---|---|
| 通信接口 | 3-wire SPI、4-wire SPI | 灰度等级 | 4 |

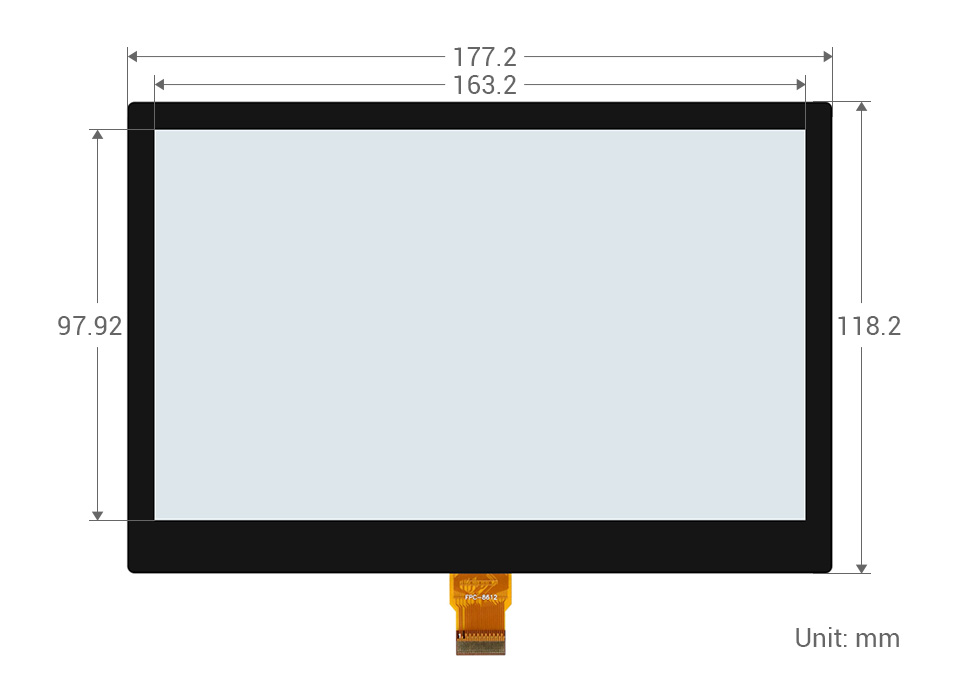

| 外形尺寸 | 177.2 × 118.2 × 2.00mm | 全局刷新 | 4s |
| 显示尺寸 | 163.20 × 97.92mm | 快速刷新 | 1.5s |
| 点距 | 0.205 × 0.204mm | 局部刷新 | 0.4s |
| 可视角度 | >170° | 四灰度刷新 | 2.1s |
| 刷新功耗 | 26.4mW(typ.) | 分辨率 | 800 × 480 pixels |
| 休眠电流 | <0.01uA (接近 0) |
点击购买
点击购买
点击购买
点击购买
| 型号 | 显示颜色 | 灰度 | 分辨率 | 显示尺寸(mm) | 外形尺寸(mm) | 刷新 时间(s) |
局部 刷新 |
柔性 | 控制 接口 |
|---|---|---|---|---|---|---|---|---|---|
| 1.02inch e-Paper | 黑、白 | 2 | 128×80 | 21.76 × 14.00 | 32.57 × 18.60 × 0.98 | 2 | √ | – | SPI |
| 1.54inch e-Paper | 黑、白 | 2 | 200×200 | 27.00 × 27.00 | 37.32 × 31.80 × 1.05 | 2 | √ | – | SPI |
| 1.54inch e-Paper (B) | 红、黑、白 | 2 | 200×200 | 27.00 × 27.00 | 37.32 × 31.80 × 1.05 | 14 | – | – | SPI |
| 1.54inch e-Paper (E) | E6 全彩色 | 2 | 240×240 | 27.00 × 27.00 | 37.32 × 31.80 × 0.85 | 27 | – | – | SPI |
| 1.54inch e-Paper (G) | 红、黄、黑、白 | 2 | 200×200 | 27.00 × 27.00 | 37.32 × 31.8 × 1.00 | 20 | – | – | SPI |
| 1.64inch e-Paper (G) | 红、黄、黑、白 | 2 | 168×168 | 29.568 × 29.568 | 45.5 × 36.4 × 0.91 | 12 | – | – | SPI |
| 2.13inch e-Paper | 黑、白 | 2 | 250×122 | 48.55 × 23.70 | 59.20 × 29.20 × 1.05 | 2 | √ | – | SPI |
| 2.13inch e-Paper (B) | 红、黑、白 | 2 | 250×122 | 48.55 × 23.70 | 59.20 × 29.20 × 0.98 | 15 | – | – | SPI |
| 2.13inch e-Paper (G) | 红、黄、黑、白 | 2 | 250×122 | 48.55 × 23.70 | 59.20 × 29.20 × 1.00 | 16 | – | – | SPI |
| 2.15inch e-Paper (B) | 红、黑、白 | 2 | 296×160 | 48.10 × 26.00 | 60.8 × 31.8 × 1.00 | 23 | – | – | SPI |
| 2.15inch e-Paper (G) | 红、黄、黑、白 | 2 | 296×160 | 48.10 × 26.00 | 60.8 × 31.8 × 1.00 | 20 | – | – | SPI |
| 2.36inch e-Paper (G) | 红、黄、黑、白 | 2 | 296×168 | 52.096 × 29.568 | 68.1 × 37.9 × 0.85 | 12 | – | – | SPI |
| 2.66inch e-Paper | 黑、白 | 2 | 296×152 | 60.088 × 30.704 | 71.820 × 36.304 × 1.00 | 6 | √ | – | SPI |
| 2.66inch e-Paper (B) | 红、黑、白 | 2 | 296×152 | 60.088 × 30.704 | 71.820 × 36.304 × 1.00 | 15 | – | – | SPI |
| 2.66inch e-Paper (G) | 红、黄、黑、白 | 2 | 360×184 | 60.05 × 30.69 | 72.59 × 37.11 × 1.00 | 26 | – | – | SPI |
| 2.7inch e-Paper | 黑、白 | 4 | 264×176 | 57.29 × 38.19 | 70.42 × 45.80 × 0.98 | 6 | √ | – | SPI |
| 2.7inch e-Paper (B) | 红、黑、白 | 2 | 264×176 | 57.288 × 38.192 | 70.42 × 45.80 × 0.98 | 15 | – | – | SPI |
| 2.9inch e-Paper | 黑、白 | 4 | 296×128 | 66.89 × 29.05 | 79.00 × 36.70 × 1.05 | 3 | √ | – | SPI |
| 2.9inch e-Paper (B) | 红、黑、白 | 2 | 296×128 | 66.90 × 29.06 | 79.00 × 36.70 × 1.20 | 14 | √ | – | SPI |
| 2.9inch e-Paper (G) | 红、黄、黑、白 | 2 | 296×128 | 66.89 × 29.05 | 79.00 × 36.70 × 1.20 | 16 | – | – | SPI |
| 3inch e-Paper (G) | 红、黄、黑、白 | 2 | 400×168 | 70.40 × 29.568 | 86.40 × 39.20 × 0.85 | 12 | – | – | SPI |
| 3.5inch e-Paper (G) | 红、黄、黑、白 | 2 | 384×184 | 79.68 × 38.18 | 90.00 × 44.23 × 1.00 | 20 | – | – | SPI |
| 3.52inch e-Paper | 黑、白 | 2 | 360×240 | 74.51 × 49.67 | 84.70 × 54.41 × 1.18 | 1.5 | – | – | SPI |
| 3.52inch e-Paper (B) | 红、黑、白 | 2 | 360×240 | 74.51 × 49.67 | 84.70 × 54.41 × 0.85 | 16 | – | – | SPI |
| 3.6inch e-Paper (E) | E6全彩色 | 2 | 600×400 | 76.20 × 50.80 | 86.60 × 56.00 × 0.78 | 15 | – | – | SPI |
| 3.7inch e-Paper | 黑、白 | 4 | 480×280 | 81.12 × 47.32 | 93.30 × 54.90 × 0.78 | 3 | √ | – | SPI |
| 3.7inch e-Paper(G) | 红、黄、黑、白 | 2 | 416×240 | 81.54 × 47.04 | 92.99 × 53.00 × 1.00 | 20 | – | – | SPI |
| 3.97inch e-Paper | 黑、白 | 4 | 800×480 | 99.50 × 60.00 | 96.62 × 56.24 × 0.92 | 3.5 | √ | – | SPI |
| 3.97inch e-Paper(G) | 红、黄、黑、白 | 2 | 800×480 | 99.50 × 60.00 | 96.62 × 56.24 × 0.92 | 21 | – | – | SPI |
| 4inch e-Paper (E) | E6全彩色 | 2 | 600×400 | 84.60 × 56.40 | 99.00 × 66.00 × 0.85 | 19 | – | – | SPI |
| 4.2inch e-Paper | 黑、白 | 4 | 400×300 | 84.80 × 63.60 | 91.00 × 77.00 × 1.18 | 5 | √ | – | SPI |
| 4.2inch e-Paper (B) | 红、黑、白 | 2 | 400×300 | 84.80 × 63.60 | 91.00 × 77.00 × 1.05 | 15 | – | – | SPI |
| 4.2inch e-Paper (G) | 红、黄、黑、白 | 2 | 400×300 | 84.80 × 63.60 | 91.00 × 77.00 × 1.00 | 21 | – | – | SPI |
| 4.26inch e-Paper | 黑、白 | 4 | 800×480 | 92.80 × 55.68 | 129.33 × 62.37 × 0.93 | 4 | √ | – | SPI |
| 4.26inch e-Paper (G) | 红、黄、黑、白 | 2 | 800×480 | 92.80 × 55.68 | 105.33 × 62.37 × 0.91 | 20 | – | – | SPI |
| 4.37inch e-Paper (G) | 红、黄、黑、白 | 2 | 512×368 | 90.11 × 64.77 | 99.50 × 79.50 × 0.85 | 14 | – | – | SPI |
| 5inch e-Paper | 黑、白 | 2 | 960×552 | 110.59 × 62.65 | 126.38 × 71.19 × 0.79 | 1.8 | √ | – | SPI |
| 5.65inch e-Paper (F) | 7彩色 | 2 | 600×448 | 114.90 × 85.80 | 125.40 × 99.50 × 0.91 | <35 | – | – | SPI |
| 5.79inch e-Paper | 黑、白 | 4 | 792×272 | 139.00 × 47.74 | 150.92 × 56.94 × 1.00 | 3.5 | √ | – | SPI |
| 5.79inch e-Paper (B) | 红、黑、白 | 2 | 792×272 | 139.00 × 47.74 | 150.92 × 56.94 × 1.00 | 24 | – | – | SPI |
| 5.79inch e-Paper (G) | 红、黄、黑、白 | 2 | 792×272 | 139.00 × 47.74 | 150.92 × 56.94 × 1.00 | 21 | – | – | SPI |
| 5.83inch e-Paper | 黑、白 | 2 | 648×480 | 119.232 × 88.320 | 125.40 × 99.50 × 1.18 | 5 | – | – | SPI |
| 5.83inch e-Paper (G) | 红、黄、黑、白 | 2 | 648×480 | 118.78 × 88.22 | 125.40 × 99.50 × 1.20 | 20 | – | – | SPI |
| 6inch HD e-Paper | 黑、白 | 16 | 1448×1072 | 122.356 × 90.60 | 138.40 × 101.80 × 0.67 | <1 | √ | – | 并口 |
| 7.3inch e-Paper (E) | E6全彩色 | 2 | 800×480 | 160.00 × 96.00 | 170.20 × 111.20 × 0.91 | 25 | – | – | SPI |
| 7.3inch e-Paper (F) | 7彩色 | 2 | 800×480 | 160.00 × 96.00 | 170.20 × 111.20 × 0.91 | 35 | – | – | SPI |
| 7.5inch e-Paper | 黑、白 | 4 | 800×480 | 163.20 × 97.92 | 170.20 × 111.20 × 1.18 | 4 | √ | – | SPI |
| 7.5inch e-Paper (B) | 红、黑、白 | 2 | 800×480 | 163.20 × 97.92 | 170.20 × 111.20 × 1.18 | 26 | √ | – | SPI |
| 7.5inch e-Paper (G) | 黑、白 | 4 | 800×480 | 163.20 × 97.92 | 177.20 × 118.20 × 2.00 | 4 | √ | – | SPI |
| 7.5inch e-Paper (H) | 红、黄、黑、白 | 2 | 800 × 480 | 163.20 × 97.92 | 170.20 × 111.20 × 1.20 | 22 | – | – | SPI |
| 7.8inch e-Paper | 黑、白 | 16 | 1872×1404 | 158.18 × 118.64 | 173.80 × 127.60 × 0.78 | <1 | √ | – | 并口 |
| 9.7inch e-Paper | 黑、白 | 16 | 1200×825 | 202.80 × 139.43 | 218.80 × 156.425 × 1.15 | <1 | √ | – | 并口 |
| 9.7inch e-Paper (E) | E6 全彩色 | 2 | 1120×784 | 201.60 × 141.12 | 210.80 × 154.90 × 0.74 | 30 | – | – | SPI |
| 10.2inch e-Paper (G) | 红、黄、黑、白 | 2 | 960 × 640 | 215.52 × 143.68 | 224.00 × 157.00 × 1.00 | 27 | – | – | SPI |
| 10.3inch e-Paper | 黑、白 | 16 | 1872×1404 | 209.66 × 157.25 | 216.70 × 174.40 × 0.78 | <1 | √ | – | 并口 |
| 10.3inch e-Paper (D) | 黑、白 | 16 | 1872×1404 | 209.664 × 157.248 | 227.70 × 165.80 × 0.647 | <1 | √ | √ | 并口 |
| 10.85inch e-Paper | 黑、白 | 2 | 1360×480 | 259.76 × 91.68 | 270.56 × 105.92 × 1.20 | 3.5 | √ | – | SPI |
| 10.85inch e-Paper (G) | 红、黄、黑、白 | 2 | 1360×480 | 259.76 × 91.68 | 270.56 × 105.92 × 1.20 | 21 | – | – | SPI |
| 12.48inch e-Paper | 黑、白 | 2 | 1304×984 | 252.976 × 190.896 | 261.50 × 211.00 × 1.18 | <8 | – | – | SPI |
| 12.48inch e-Paper (B) | 红、黑、白 | 2 | 1304×984 | 252.98 × 190.90 | 261.40 × 211.00 × 1.20 | 37 | – | – | SPI |
| 13.3inch e-Paper | 黑、白 | 16 | 1600×1200 | 270.40 × 202.80 | 285.80 × 213.65 × 0.78 | <1 | √ | – | 并口 |
| 13.3inch e-Paper (B) | 红、黑、白 | 2 | 960×680 | 275.52 × 195.16 | 286.32 × 212.26 × 1.20 | 22 | √ | – | SPI |
| 13.3inch e-Paper (E) | E6全彩色 | 2 | 1600×1200 | 270.40 × 202.80 | 284.70 × 208.80 × 0.850 | 19 | – | – | SPI |
| 13.3inch e-Paper (K) | 黑、白 | 4 | 960×680 | 275.52 × 195.16 | 286.32 × 212.26 × 1.20 | 5 | √ | – | SPI |
|
说明 |
保修期内，正常使用下产生的质量问题，比如出现色差、触摸不灵等。
非正常使用情况下产生的质量问题，视损坏程度收取维修费。
显示屏和镜头属玻璃制品，请妥善存放和使用，若屏幕或镜头出现磨损或爆裂，无法保修。
• 售后服务仅限产品本身，不包括教导相关软件使用等（配套资料已有说明书及软件使用教程)
• 不负责上门服务
• 可通过以下方式联系我们：点击查看
| 型号 | 21393 |
|---|---|
| 品牌 | 微雪电子/WAVESHARE |
| brand | 微雪电子/WAVESHARE |
| 库存状态 | 现货 |
| 发货地 | 广东 · 深圳 |
